Decommissioning

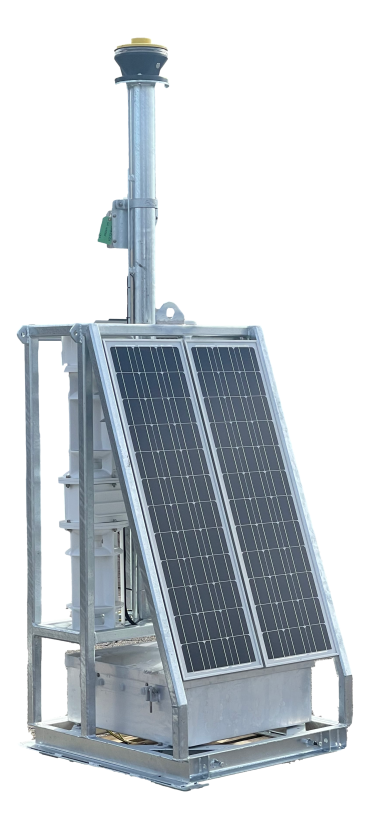

Skid 5-10NM
The DECOMMISSIONING SKID 5-10NM is a superb self- contained system for DECOMMISSIONING and for OWF’s.A hot dipped gallized steel frame which includes a 2NM foghorn, battery back-up Solar Panels, visibility sensor and Marine Lantern. The Skid has a single lifting eye and is ready for operation by means of one switch. Designed by IALA regulations and enough batter back-up, the system can be placed also in low sunshine locations.
specifications
| Application | : (temporary) Skid for Decommissioning and or OWF’s |
| Material | : Hot dipped galvanized steel |
| LED type | : High intensity, red, green, yellow and white range up to 11NM |
| Life expectancy | : Approx. 100,000 hours |
| Electrical parameters | : Battery back-up, 2NM foghorn, visibility sensor and marine lantern |
| Daylight switch | : Internally placed |
| Horizontal spread | : 360 degrees |
| Vertical divergence | : 10° degrees |
| Max. intensity | : Depending on setting up to 11NM |
| Volt range | : 12 volt DC |
| Protection class | : IP68 |
| Synchronisation | : Via Internal GPS reciever |
| Operating temperature | : -40°C à +55°C |
| Lifting | : Single hook |
| Size | : 1000x1000x1850mm (light at 2500mm) |
| Weight | : 560 kg |
